Sportdevices shock absorber test bench electronic & software

The Sportdevices ShockAnalyzer test bench kit is an indispensable tool when registering and analyzing the shock absorber operation. The kit is supplied with ShockAnalyzer software.

Please note!: This kit contains only the test bench electronics but not the shock absorber test bench.

SD-SB-TB-KIT
€1.595,00 excl. VAT
Quantity

Sportdevices ShockAnalyzer electronic kit for shock absorber test bench

Build your own shock absorber test dynamometer with this Sportdevices ShockAnalyzer elecctronics and Shock Analyzer software kit. At the item its Download page several example drawings / layouts can be donwloaded for manufacturing the mechanical parts. The shock absorber test bench is only a guideline and can be improvised to your own application needs. Please note we only answer your questions concering the test bench electronics and software.

The Sportdevices testbank electronics kit consists out of the following parts:

  • Electronic DAQ module Sportdevices ShockAnalyzer
  • Load cell (standard 1.000 kg)
  • Linear 100 mm potentiometer + extension cable
  • Serial PC communication cable
  • Power supply cable
  • Analog cable for Variable Frequency Drive (VFD) connection
  • ShockAnalyzer software

Features ShockAnalyzer Sportdevices test bench electronics kit:

  • Real-time data acquisition on your PC or laptop.
  • ShockAbsorber speed, temperature and force registration.
  • Multi-speed: Motor is driven by VFD to record the shockabsorber characteristics at several speeds.
  • Multi-test: Several tests can be loaded or registered.

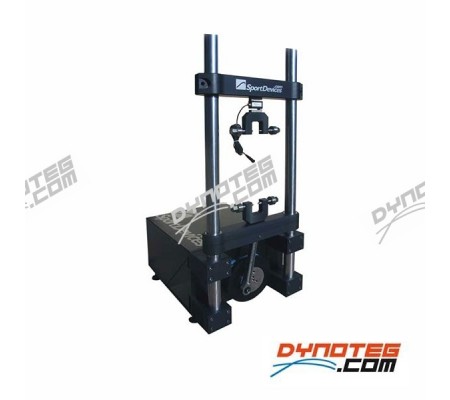

All other (mechanical) parts must be manufactured or purchased themselves. The images contain example images of a complete shock absorber test bench.

Dynoteg makes tuning easy!

Height
9 cm
Width
15,5 cm
Length
20 cm
Weight
1,8 kg
Thermocouple input
1x
Supply Voltage
230 VAC - 50 Hz
Load cell
1000 kg
