Sportdevices SP1+ dyno electronics & software kit for braked dyno
Dyno Test bench electronics Sportdevices SP1+ dyno electronics for chassis and engine eddy current or water brake dyno's. A Sportdevices PWS brake power supply and/or loadcell are optional. The Sportdyno dyno software and updates are free to download. No unnecessary expensive chassis dynamometer software license required!

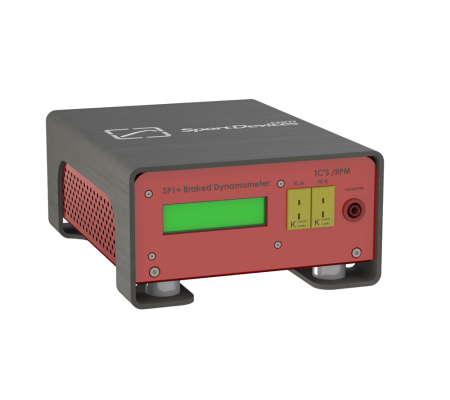

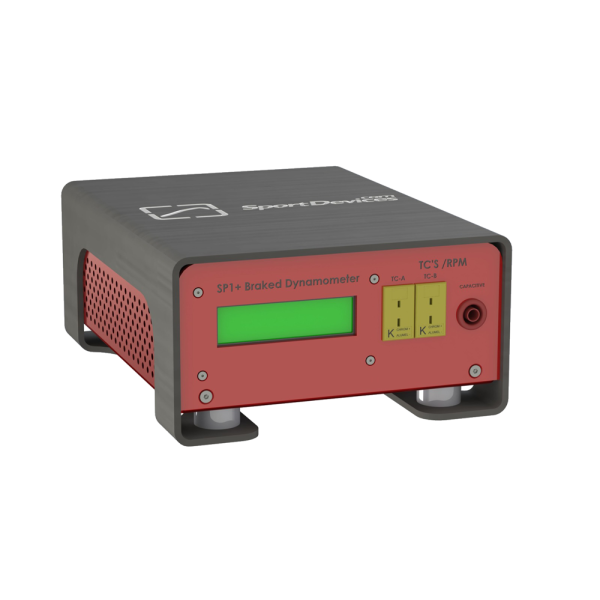

Sportdevices SP1+ eddy current brake test bench dyno electronics & Sportdyno software kit
The Sportdevices SP1+ dyno electronics + Sportdyno software set for Eddy Current Brake dynamometers. This dyno kit is the cheapest choice when you are building your own eddy current brake dyno or when you want to convert an old eddy current brake dyno, for example Schenck, Borghi & Saveri, Hofmann, Sun, Bosch, AVL or other. The Sportdevices SP1+ dyno electronic kit is also suitable for AWD or 4WD car dyno's. This system takes care of your power measurements, data acquisition and control of the eddy current brake. In addition to power measurements, this is a perfect device for example ECU calibration, emission adjustments and endurance tests.
This dyno test bench electronics and software kit controls the eddy current brake by the PC software (PID control). The new eddy current brake PWS power supply module is extremely fast and therefor this set enables you to have very stable control of your (low inertia) eddy current brake without using a flywheel mass. A short introduction of this fast control can been seen in the following video.
Feel free to contact us when help is needed on your project.
Wat does SP1+ have less than SP5? SP1+ has no CAN bus, no Airspeed output, no Ethernet connection, no relay outputs, 2 thermocouple inputs (instead of 8 on SP5), 4 analog inputs (instead of 6 on SP5), 1x loadcell input (instead of 2 on SP5), 1x roller rpm input (instead of 2 on SP5) and 1x brake power supply signal output (instead of 2 on SP5).
This Dynoteg SP1+ set contains the following items:
-
1x Sportdevices SP1+ dyno electronics data acqisition system (DAQ)
-
1x Hall sensor for flywheel- / Eddy Current brake speed
-
1x Capacitive rpm clamp for engine speed
-
1x Set of connection cables
-
1x USB to serial adapter
Optional:
-
1x Load cell
-
1x Brake Power Supply PWS
Sportdyno software functionality:
- Easy operation via 1 external button or by the PC
-
Graphs against time, rolling speed / speed and against engine speed
-
Tests overlay
-
Calculation of average power between 2 speeds
-
Calculation of average power of different tests
-
Zoom in and out
-
Different correction methods for weather conditions (optional via automatic weather station)
-
Automatic calculation of gear ratio
Dynoteg makes tuning easy!
- Height
- 9 cm
- Width
- 22 cm
- Length
- 23 cm
- Weight
- 3,0 kg
- Analog input
- 4x
- Thermocouple input
- 2x
- Supply Voltage
- 200 - 240 VAC / 50 - 60 Hz
- Engine speed input (RPM)
- 1x
- Roller speed input (RPM)
- 1x
- Load cell input
- 1x
- PWM brake control signal
- 1x
- Om/Off button
- Yes
- Pulse counter
- 1x
- Servo output / throttle valve position output
- 1x
